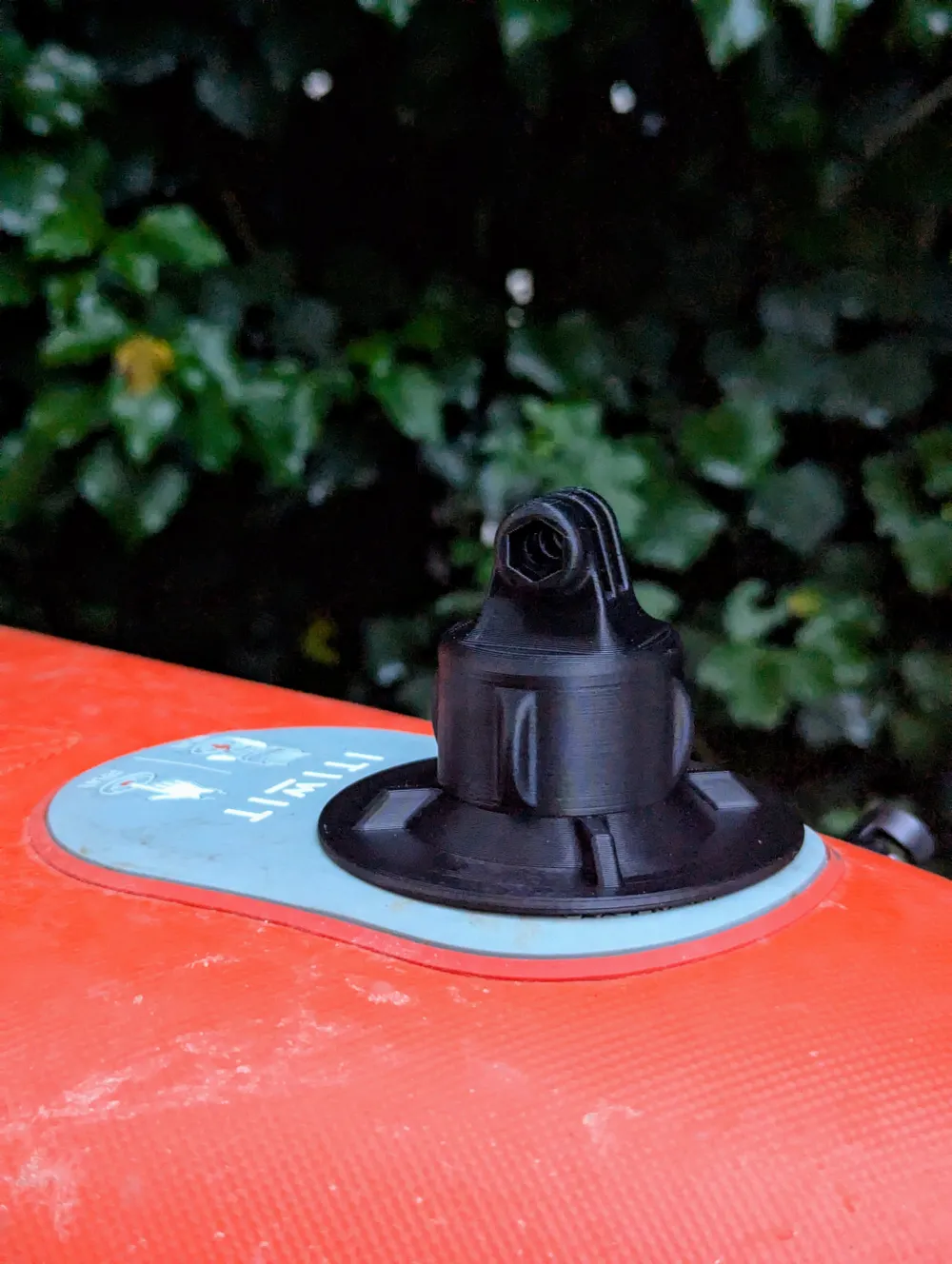

This mount started with a very simple goal: use the existing Halkey-Roberts valve on a stand-up paddle board as a reliable mounting point for a GoPro. The idea was straightforward. The useful part only appeared once the design had survived actual installation and real load.
The original idea
Adhesive GoPro mounts work, but on inflatable boards the valve is the much more interesting interface. It is already there, already strong, and already positioned in a way that can make sense for filming.
So the first version focused on creating a clean adapter with a screw mechanism that holds onto that valve securely while still being easy to install.
Where the first version was not good enough
The weak point showed up not while paddling, but while installing the part. That is exactly the kind of feedback I find valuable, because it reveals a real load case that CAD can understate. The narrow section of the adapter used to break when too much torque was applied during tightening.
That changed the project from mounting adapter to mounting adapter that needs to survive torsion from real human behavior.
The redesign
The important improvement was not to make the shape look heavier. The important part was to redesign the critical area around the actual layer orientation. The stronger version therefore uses split print plates so the vulnerable section can be printed in a direction that handles torsion much better.
This is exactly the kind of decision that makes a printed part either feel trustworthy or remain a prototype forever. It is not only about the geometry of the final object. It is about how that geometry relates to the print direction and the forces the part actually sees.
Practical fit and assembly notes
Another useful detail is that the threaded section is intentionally easy-running so installation is not annoying. That helps, but it also introduces a second practical issue: if everything stays too free, the camera side can rotate during use.
That is why the setup benefits from lock nuts. It is a good example of a recurring pattern in printed hardware: sometimes the best overall solution is not make every single printed feature tighter, but define where the printed part ends and where standard hardware finishes the job properly.
Why this project belongs on the site
This is not an especially flashy print, but it is a very honest one. It solved a real mounting problem, then got better because the first version failed in a realistic way. Those are exactly the projects I want to document here: not only what worked in the final photo, but what had to change before the part deserved to stay in use.
